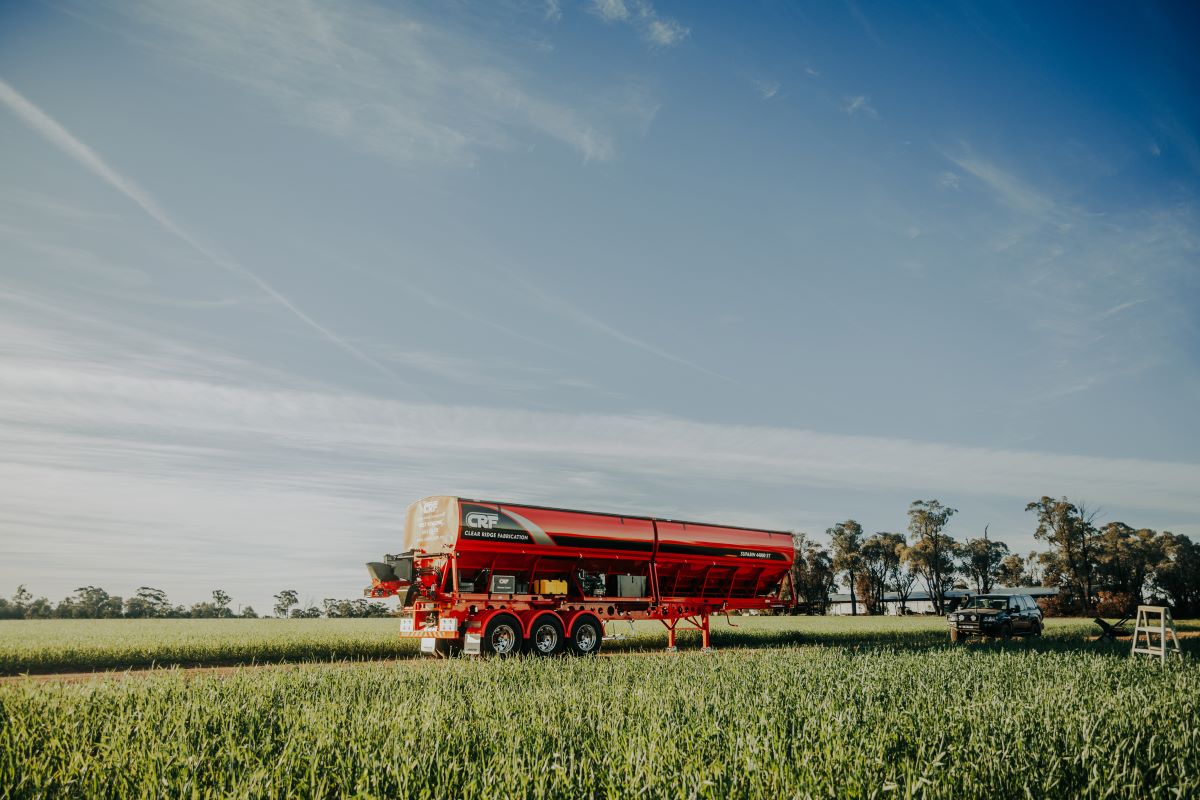

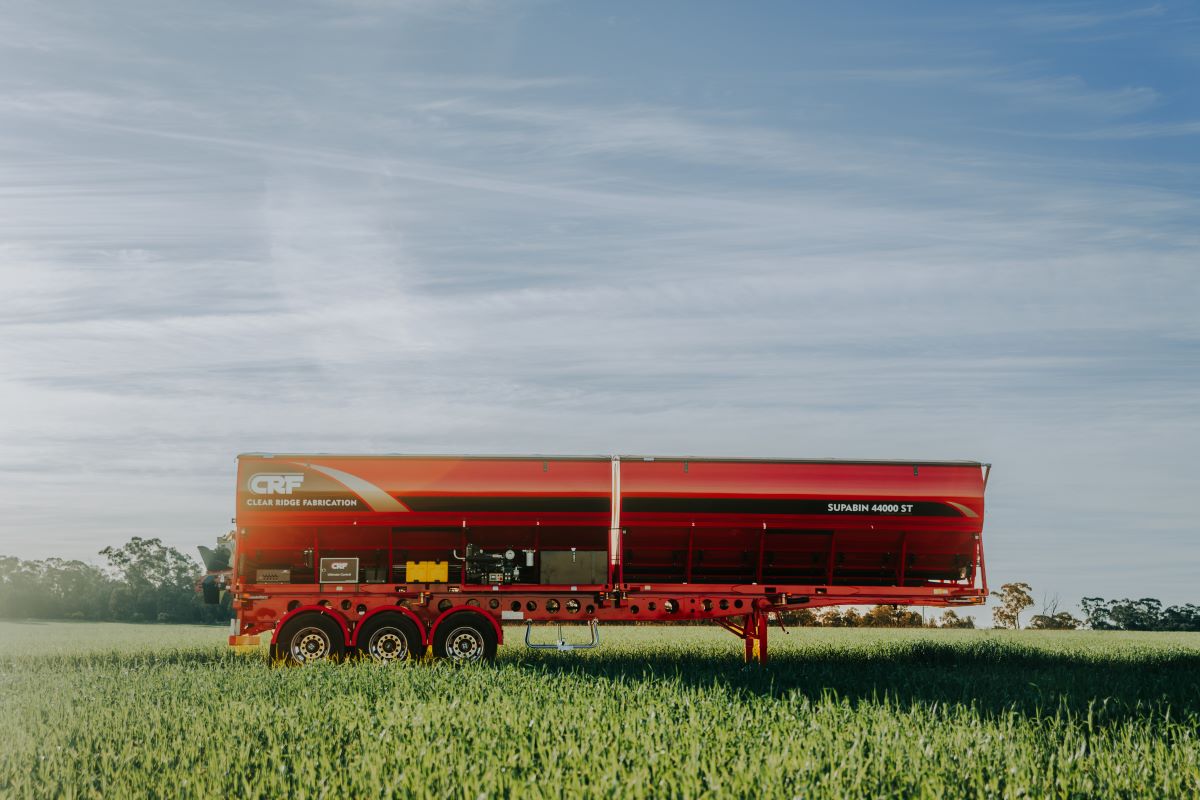

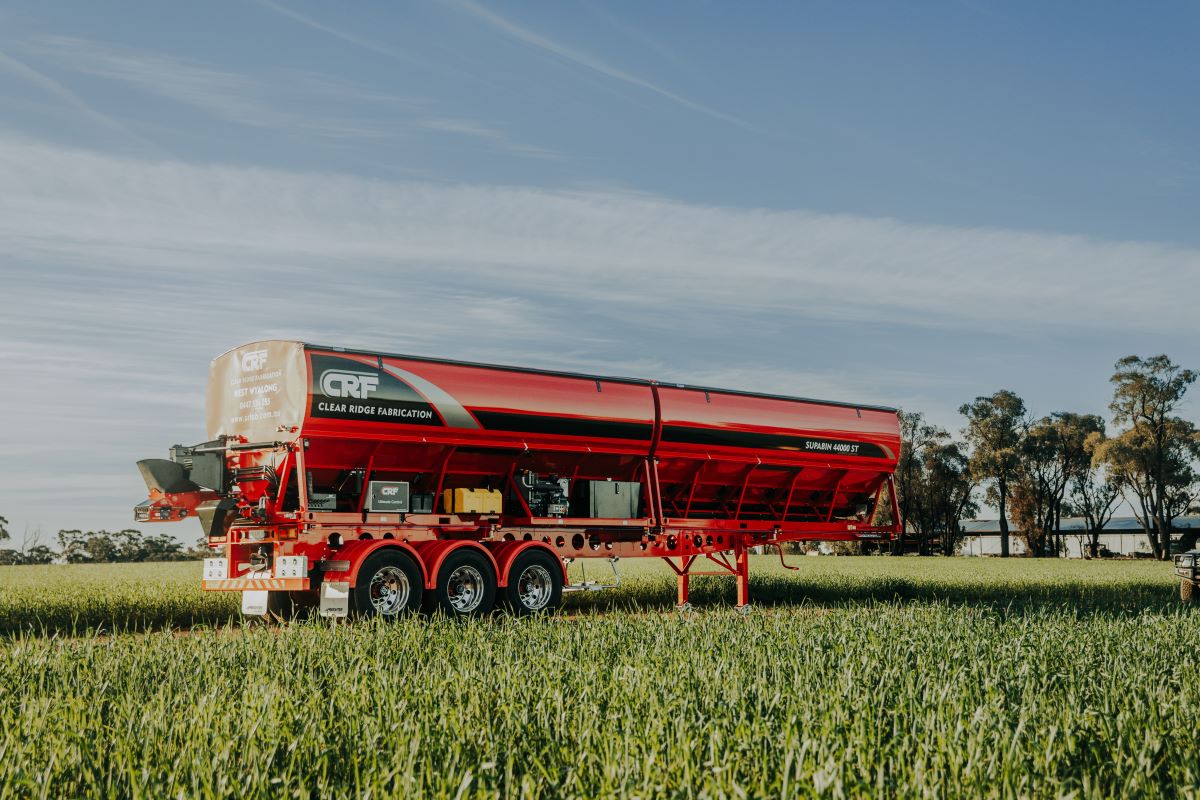

The CRF SUPA Bin ST is a self-contained, multi-purpose grain and fertiliser handling bin with fully remote-controlled tube operation and is rapidly gaining popularity Australia wide.

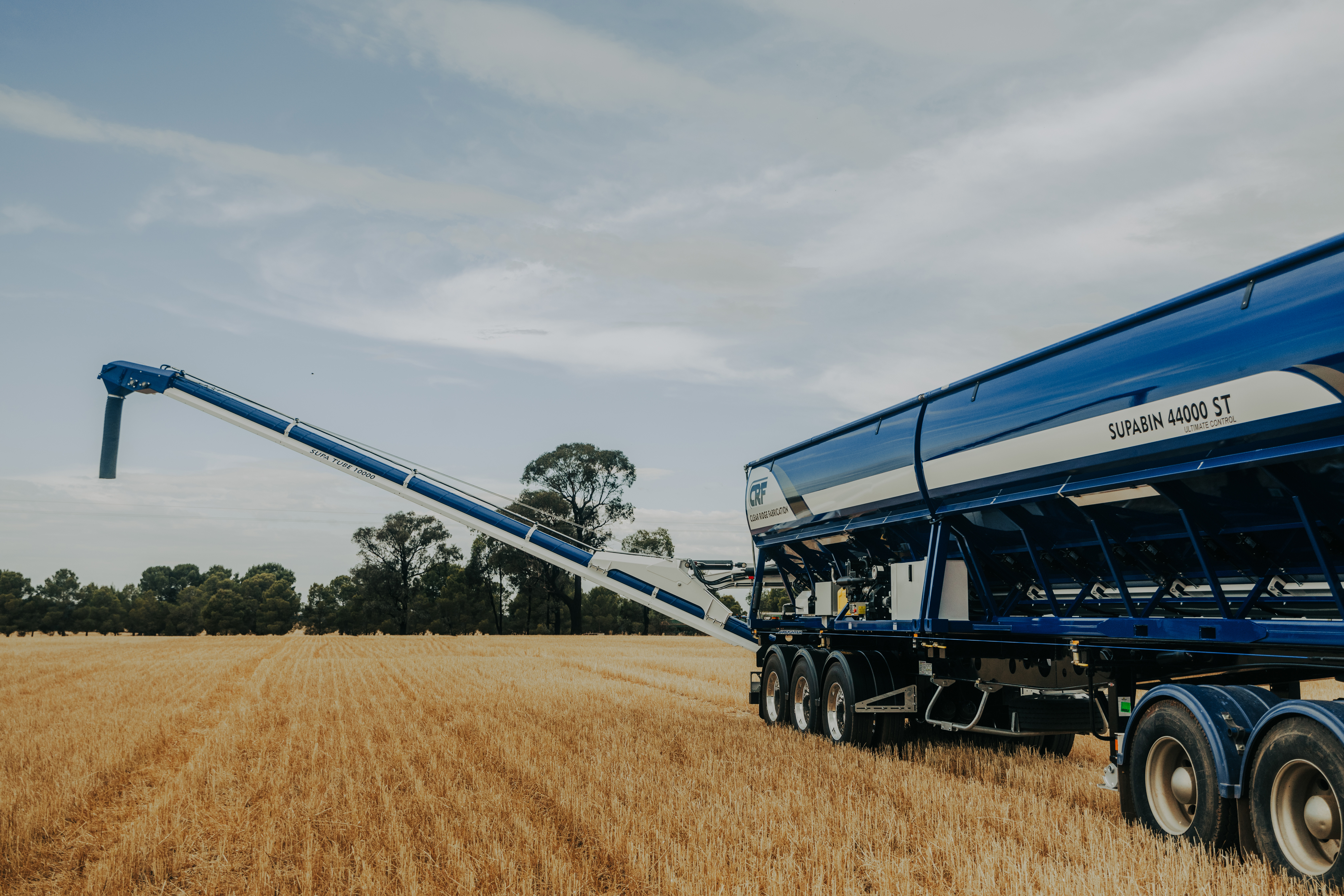

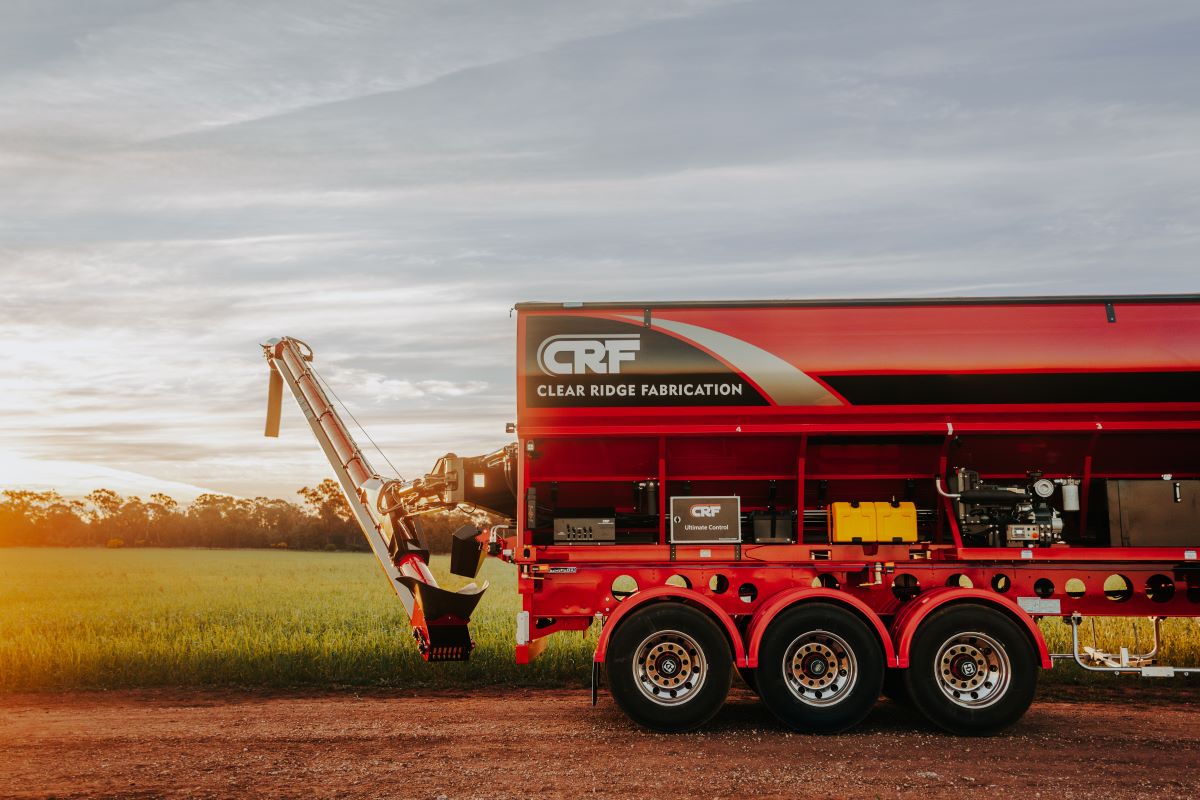

The CRF SUPA Tube has a 180° working radius from the rear of the SUPA Bin, and folds inside the road transport width (2.5m), meaning permits aren’t required for road travel. Efficiently fill silo bags, fertiliser spreaders and feeders as well as transferring grain and fertiliser into field bins and other trucks.
The high-capacity rear discharge belt ensures the SUPA Bin is an efficient and user-friendly means of transferring grain back to on-farm storage solutions at harvest time and/or delivery of grain directly into bulk grain handling systems. The delivery belt has a discharge capacity of up to four tonnes per minute, which in combination with the remotely controlled compartment doors, makes the SUPA Bin the perfect unit for drive over hoppers.
No more concerns about tipping trucks in wet or soft paddocks with our SUPA Bin powerhouse.
Bill McMahon from Mulwala in the Southern Riverina farms wheat, barley, oats and canola. Bill also runs livestock and owns/manages an impeccably tidy farm. He purchased a CRF SUPA Bin 44000 with with a 10,000 SUPA Tube in 2022 and hasn’t looked back!
"We went with a 60/40 spilt on both compartments, gives us a good verity of products we can use for spreading"
"With the wireless remote we can; start the engine, alter the RPM, swing SUPA Tube out, operate and close all shutters on all compartments, turn the lights on and also operate the cameras inside the bin"
"It takes approximately half the time to unload as it used to take"
SUPA Bin 22,000 | SUPA Bin 29,000 | SUPA Bin 44,000 | SUPA Bin 50,000 | ||||
|---|---|---|---|---|---|---|---|
Litres | 22,000 L | 29,000 L | 44,000 L | 50,000 L | |||
Bin 1 – Compartment 1 | 13,200 L | 8,300 L | 13,200 L | 15,000 L | |||
Bin 1 – Compartment 2 | 8,800 L | 8,300 L | 8,800 L | 10,000 L | |||
Bin 2 – Compartment 3 | N/A | 12,400 L | 8,800 L | 10,000 L | |||
Bin 2 – Compartment 4 | N/A | N/A | 13,200 L | 15,000 L | |||
Tonnes (wheat) | 17.16 | 22.62 | 34.32 | 39 | |||
Tonnes (fertiliser) | 22 | 29 | 44 | 50 | |||
Compartments (standard) | 2 | 3 | 4 | 4 | |||
Standard Drive | Kohler CH270 / Hydraulic Drive | Kohler CH270 / Hydraulic Drive | Kohler CH270 / Hydraulic Drive | Kohler CH270 / Hydraulic Drive | |||
Optional Drive | Hydraulic Power Pac | Hydraulic Power Pac | Hydraulic Power Pac | Hydraulic Power Pac | |||
Length | 6000mm | 8000mm | 12000mm | 12000mm | |||
Width | 2450mm | 2450mm | 2450mm | 2450mm | |||
Height | 2350mm | 2350mm | 2350mm | 2600mm | |||
Tray Length Required (with tube) | 6.8m | 8.8m | 12m | 12m | |||
Tube Length Options | 6m | 6m | 8m | 8m | 10m | 8m | 10m |
Working Height-based on a 1.2m tray height | 3.5m | 3.5m | 4.5m | 4.5m | 5.5m | 4.5m | 5.5m |
Minimum Tube Height | 2.7m | 2.7m | 3.4m | 3.4m | 4.1m | 3.4m | 4.1m |
Reach | 5m | 5m | 7m | 7m | 9m | 7m | 9m |
SUPA Bin 22 000 | |
|---|---|
Litres | 22 000L |
Bin 1 – Compartment 1 | 13 200L |
Bin 1 – Compartment 2 | 8 800L |
Bin 2 – Compartment 3 | N/A |
Bin 2 – Compartment 4 | N/A |
Tonnes (wheat) | 17.16t |
Tonnes (fertiliser) | 22t |
Compartments (standard) | 2 |
Standard Drive | Kohler CH270 / Hydraulic Drive |
Optional Drive | Hydraulic Power Pac |
Length | 6000mm |
Width | 2450mm |
Height | 2350mm |
Tray Length Required (with tube) | 6.8m |
Tube Length Options | 6m |
Working Height-based on a 1.2m tray height | 3.5m |
Minimum Tube Height | 2.7m |
Reach | 5m |
SUPA Bin 29 000 | ||
|---|---|---|
Litres | 29 000L | |
Bin 1 – Compartment 1 | 8 300L | |
Bin 1 – Compartment 2 | 8 300L | |
Bin 2 – Compartment 3 | 12 400L | |
Bin 2 – Compartment 4 | N/A | |
Tonnes (wheat) | 22.62t | |
Tonnes (fertiliser) | 29t | |
Compartments (standard) | 3 | |
Standard Drive | Kohler CH270 / Hydraulic Drive | |
Optional Drive | Hydraulic Power Pac | |
Length | 8000mm | |
Width | 2450mm | |
Height | 2350mm | |
Tray Length Required (with tube) | 8.8m | |
Tube Length Options | 6m | 8m |
Working Height-based on a 1.2m tray height | 3.5m | 4.5m |
Minimum Tube Height | 2.7m | 3.4m |
Reach | 5m | 7m |
SUPA Bin 44 000 | ||
|---|---|---|
Litres | 44 000L | |
Bin 1 – Compartment 1 | 13 200L | |
Bin 1 – Compartment 2 | 8 800L | |
Bin 2 – Compartment 3 | 8 800L | |
Bin 2 – Compartment 4 | 13 200L | |
Tonnes (wheat) | 34.32t | |
Tonnes (fertiliser) | 44t | |
Compartments (standard) | 4 | |
Standard Drive | Kohler CH270 / Hydraulic Drive | |
Optional Drive | Hydraulic Power Pac | |
Length | 12000mm | |
Width | 2450mm | |
Height | 2350mm | |
Tray Length Required (with tube) | 12m | |
Tube Length Options | 8m | 10m |
Working Height-based on a 1.2m tray height | 4.5m | 5.5m |
Minimum Tube Height | 3.4m | 4.1m |
Reach | 7m | 9m |
SUPA Bin 50 000 | ||
|---|---|---|
Litres | 50 000L | |
Bin 1 – Compartment 1 | 15 000L | |
Bin 1 – Compartment 2 | 10 000L | |
Bin 2 – Compartment 3 | 10 000L | |
Bin 2 – Compartment 4 | 15 000L | |
Tonnes (wheat) | 39t | |
Tonnes (fertiliser) | 50t | |
Compartments (standard) | 4 | |
Standard Drive | Kohler CH270 / Hydraulic Drive | |
Optional Drive | Hydraulic Power Pac | |
Length | 12000mm | |
Width | 2450mm | |
Height | 2600mm | |
Tray Length Required (with tube) | 12m | |
Tube Length Options | 8m | 10m |
Working Height-based on a 1.2m tray height | 4.5m | 5.5m |
Minimum Tube Height | 3.4m | 4.1m |
Reach | 7m | 9m |
Note: Compartment sizes are available to be customised.
The CRF SUPA Bin ST stands out for its fully remote-controlled tube operation, providing a 180° working radius from the rear of the bin. This innovative design allows for efficient handling of grain and fertiliser, making it a ‘must-have’ for Australian farmers.
The remote-control feature transforms seeding and fertilising into a hassle-free, one-person operation. This innovation enhances efficiency and ease of use in agricultural tasks.
Yes, the CRF SUPA Bin ST is highly customisable. The vast array of options allows farmers to tailor the bin precisely to their unique requirements, ensuring optimal functionality for various farming operations.
